SCP

Posted on by Thor Leave a comment

If you have been following previous posts about Floppy disk flux captures, you may have read about the HFE or A2R flux image formats. Both very useful in the preservation, archiving and emulation of old software and games stored on decaying and copy-protected floppy disks. I also built a Fluxengine which has come in handy more than once. It captures flux data in its own FLUX format. At work I also have access to a Kryoflux board which captures in separate RAW tracks.

Today we are looking at the SCP format. I recently purchased a Greaseweazle for personal use and the main format used while capturing raw flux data is SCP. It works a little better on my older MacBook Pro than the fluxengine and I wanted to have another option for capturing flux data. So far it has worked really well. Of course I wanted to know everything I could about the SCP format so the first thing I did was run Siegfried against a file.

filename : 'unknown.scp'
filesize : 47017278
modified : 2025-06-14T19:09:58-06:00
errors   :
matches  :
  - ns      : 'pronom'
    id      : 'UNKNOWN'
    format  :
    version :
    mime    :
    class   :
    basis   :
    warning : 'no match'
  - ns        : 'wikidata'
    id        : 'Q29000565'
    format    : 'SuperCard Pro dump'
    URI       : 'http://www.wikidata.org/entity/Q29000565'
    permalink : 'https://www.wikidata.org/w/index.php?oldid=1866792367&title=Q29000565'
    mime      : 'application/octet-stream'
    basis     : 'extension match scp; byte match at 0, 3 (Wikidata reference is empty)'

Looks like Wikidata has a signature pattern, but PRONOM does not. Lets take a look and see how difficult it might be.

hexdump -C unknown.scp | head
00000000  53 43 50 00 80 03 00 a3  23 00 00 00 d2 0f 26 99  |SCP.....#.....&.|
00000010  b0 02 00 00 14 43 04 00  c6 96 08 00 64 78 0d 00  |.....C......dx..|
00000020  ea bb 12 00 de 37 16 00  a2 b3 19 00 26 68 1e 00  |.....7......&h..|
00000030  42 b7 23 00 2a 33 27 00  c8 ae 2a 00 a8 54 2f 00  |B.#.*3'...*..T/.|
00000040  fc 94 34 00 e2 10 38 00  a8 8c 3b 00 98 68 40 00  |..4...8...;..h@.|
00000050  1c b6 45 00 14 32 49 00  cc ad 4c 00 9e 9b 51 00  |..E..2I...L...Q.|
00000060  0e d3 56 00 de 4e 5a 00  74 ca 5d 00 be 7b 62 00  |..V..NZ.t.]..{b.|
00000070  b4 b3 67 00 a8 2f 6b 00  68 ab 6e 00 50 88 73 00  |..g../k.h.n.P.s.|
00000080  0c ce 78 00 02 4a 7c 00  ae c5 7f 00 96 bd 84 00  |..x..J|.........|
00000090  8a 2d 8a 00 8a a9 8d 00  56 25 91 00 b6 a3 95 00  |.-......V%......|

Well, probably not hard at all. I love easy well understood headers. But only three bytes can have issues, lets look a little closer at the published specification. Before we dive into the spec, it might be good to note a few things. The SCP image format was developed for another hobby board. A Supercard Pro, is a custom board to connect a floppy drive through USB to software which can also capture flux data and help interpret the data to a image format which can be used to write back to a floppy or used in an emulator. The software is Windows only so those on Linux or MacOS can’t use it, but since the specification was made public, many other boards and tools can read and write to the format. Even though it is open, I worry about preserving the spec. When you try and ensure it is saved in the WayBackMachine you get this fun page.

This sorry page is usually found when the owner of a URL has asked specifically for their domain to be excluded from the web archive. This worries me as I have found many specifications have been lost to time. I would love to know why the owner has chosen to do this, but it is available now, so lets dive in. The versions appear to have started in 2014, but the page is copyright 2012, so I assume the format was created around this time. It was last updated in February of 2024, so is pretty up-to-date. One important update was made in 2021:

v2.3 - 06/03/21

*  Added additional FLAG bit (bit 7) to identify a 3rd party flux creator.  PLEASE
   SET THIS BIT IF YOU ARE A 3RD PARTY DEVELOPER USING THE SCP FORMAT!

This update to version 2.3 added a bit to indicate the 3rd party flux creator. This means a board like the Greaseweazle will indicate its software as the creator instead of a SCP created by SuperCard Pro.

The header of an SCP file is comprised of a few bytes, not just the ASCII “SCP”.

All offsets are the start of the file (byte 0) unless otherwise stated.  The .scp image
consists of a disk definition header, the track data header offset table, and the flux
data for each track (preceeded by Track Data Header).  The image file format is described
below:

BYTES 0x00-0x02 contains the ASCII of "SCP" as the first 3 bytes. If this is not found,
then the file is not ours.

With Byte 0x03, we will see the version of the software which created the SCP. In my sample, created by my Greaseweazle, did not add a number here, only “00”. Byte 0x04 is the disk type, there is some set definitions in the spec for this byte. My test sample uses “80”, but not sure what that represents. Bytes 5-7 are used for other disk information, but byte 8 is where we find the flags which include a bit for flux creator. My sample has the value “23”, but since we are looking at the individual bit level, the value will be a combination of all the bits in the flag area. The individual bits are, “00100011”, so since the seventh bit is set, then the SCP was created by 3rd party which is correct.

So the only reliable static data in the header will be those first 3 bytes. There is some bytes later in the file which should be static. That is the start of the Tracks, which include a Track Data Header. We can see from the spec, the last byte in the main header is 0x2AF, which makes the main header 687 bytes long. Starting on the 688 byte, or 0x2B0 is the ASCII string TRK. Adding these 3 bytes should make for a nice signature.

000002b0  54 52 4b 00 a9 86 65 00  5e b5 00 00 28 00 00 00  |TRK...e.^...(...|
000002c0  ab 86 65 00 60 b5 00 00  e4 6a 01 00 56 87 65 00  |..e.`....j..V.e.|
000002d0  60 b5 00 00 a4 d5 02 00  00 39 00 7e 00 7c 00 ce  |`........9.~.|..|
000002e0  00 c7 00 c7 00 cd 00 7e  00 7c 00 eb 00 4f 00 60  |.......~.|...O.`|
000002f0  00 39 00 77 00 cd 00 7c  00 7f 00 ce 00 c7 00 c6  |.9.w...|........|
00000300  00 ce 00 7a 00 80 00 cd  00 c8 00 c6 00 ce 00 7b  |...z...........{|

We could use the TRK string for identification, but looking further into the spec, we can also see the SCP format may contain a footer.

; ------------------------------------------------------------------
; EXTENSION FOOTER FORMAT
; ------------------------------------------------------------------
;
; 0000           DRIVE MANUFACTURER STRING OFFSET            - 4 bytes
; 0004           DRIVE MODEL STRING OFFSET                   - 4 bytes
; 0008           DRIVE SERIAL NUMBER STRING OFFSET           - 4 bytes
; 000C           CREATOR STRING OFFSET                       - 4 bytes
; 0010           APPLICATION NAME STRING OFFSET              - 4 bytes
; 0014           COMMENTS STRING OFFSET                      - 4 bytes
; 0018           IMAGE CREATION TIMESTAMP                    - 8 bytes
; 0020           IMAGE MODIFICATION TIMESTAMP                - 8 bytes
; 0028           APPLICATION VERSION (nibbles major/minor)   - 1 byte
; 0029           SCP HARDWARE VERSION (nibbles major/minor)  - 1 byte
; 002A           SCP FIRMWARE VERSION (nibbles major/minor)  - 1 byte
; 002B           IMAGE FORMAT REVISION (nibbles major/minor) - 1 byte
; 002C           'FPCS' (ASCII CHARS)                        - 4 bytes

Here is the tail of my sample file, you can see it contains the ASCII characters listed here for the last four bytes. It also contains an application string, indicating the Greaseweazle software used to create the file. All every helpful information. We can also see on the 5th to last byte the value “24”, this indicates the file format version being used. Version 2.4 being used in this file but we know 2.5 is the latest. I wonder if it would be valuable to have separate identification for version 1 and 2 of the format? Could also consider assigning version 2.3 and 2.4 as unique as they will have the additional 3rd party information.

hexdump -C unknown.scp | tail
02cd6cb0  00 85 00 5a 00 39 00 90  00 75 00 8e 00 42 00 3c  |...Z.9...u...B.<|
02cd6cc0  00 78 00 2e 00 42 00 3a  00 47 00 78 00 42 00 46  |.x...B.:.G.x.B.F|
02cd6cd0  00 33 00 52 00 29 00 3a  00 55 00 5d 00 5b 00 54  |.3.R.).:.U.].[.T|
02cd6ce0  00 35 00 e0 00 48 00 91  00 75 00 3a 00 36 00 33  |.5...H...u.:.6.3|
02cd6cf0  00 55 02 03 01 d3 00 33  00 58 11 00 47 72 65 61  |.U.....3.X..Grea|
02cd6d00  73 65 77 65 61 7a 6c 65  20 31 2e 32 32 00 00 00  |seweazle 1.22...|
02cd6d10  00 00 00 00 00 00 00 00  00 00 00 00 00 00 fa 6c  |...............l|
02cd6d20  cd 02 00 00 00 00 66 1d  4e 68 00 00 00 00 66 1d  |......f.Nh....f.|
02cd6d30  4e 68 00 00 00 00 00 00  00 24 46 50 43 53        |Nh.......$FPCS|

So maybe we don’t need the TRK header in our signature, just the first 3 bytes and last 4 bytes. I believe this should allow for proper identification, while avoiding false positives.

I have a proposal for a PRONOM signature and a sample file on my Github page. Other samples files can be found all over the interwebs, with many on archive.org.

miniDVD

Posted on by Thor Leave a comment

Let’s talk about the DVD format for a minute. Specifically the miniDVD media format.

DVD’s are indeed versatile, as the name implies. You can find files on them written in many different filesystems, including digital video. DVD-Video is a video format which replaced VHS tapes as a main source of home movie entertainment. Eventually the public could afford to record their own video onto these discs and enjoy them for years. With the popularity of high definition video, DVD’s are not as popular as they once were, but still provide a decent experience.

I often see the DVD-Video format in archives I work with and we use tools to “RIP” the already digital data from the disc into a new format. I use the term “RIP”, to indicate we are not digitizing the format as it already contains digital data. DVD-Video is a standard that is used on most discs and looks something like this:

tree /Volumes/VIDEO_ESSENTIALS
/Volumes/VIDEO_ESSENTIALS
├── AUDIO_TS
└── VIDEO_TS
    ├── VIDEO_TS.BUP
    ├── VIDEO_TS.IFO
    ├── VIDEO_TS.VOB
    ├── VTS_01_0.BUP
    ├── VTS_01_0.IFO
    ├── VTS_01_0.VOB
    ├── VTS_01_1.VOB
    ├── VTS_01_2.VOB
    ├── VTS_01_3.VOB
    ├── VTS_01_4.VOB
    ├── VTS_02_0.BUP
    ├── VTS_02_0.IFO
    ├── VTS_02_0.VOB
    └── VTS_02_1.VOB

3 directories, 14 files

There is usually a AUDIO_TS and a VIDEO_TS folder. The Video folder is full of video files, but the Audio folder is always empty. Apparently is was going to be used for an audio format that was abandoned, so it remains empty. Often times I will see this folder absent on non-commercial discs.

An issue that has come up many times is often I find folks copy the folder structure from the disc to preserve the video as they would with any digital file. This can be an issue as the structure was meant for software and hardware used to access the DVD-Video format. The files by themselves can often not provide the same experience, especially if the disc contains any sort of encryption, then the files are useless. This is a complex, multi-part format and should remain together in this structure or migrated to a new format, such as an MKV for preservation.

Enter the miniDVD. It is a smaller version of the standard CD/DVD optical disc size. It was very popular as a recording medium for some digital video camera’s. Much like the Sony miniDVD handycam I own. You can pop a blank disc into the camera and it prepares it for you, which takes a couple minutes, then gives you 20 minutes of recording in high quality and up to 60 minutes with a lower quality. The discs can hold up to 1.4GB and will have the same structure as its big brother.

tree /Volumes/2025_05_23_07H36M_PM
/Volumes/2025_05_23_07H36M_PM
└── VIDEO_TS
    ├── VIDEO_TS.BUP
    ├── VIDEO_TS.IFO
    ├── VIDEO_TS.VOB
    ├── VTS_01_0.BUP
    ├── VTS_01_0.IFO
    └── VTS_01_1.VOB

2 directories, 6 files

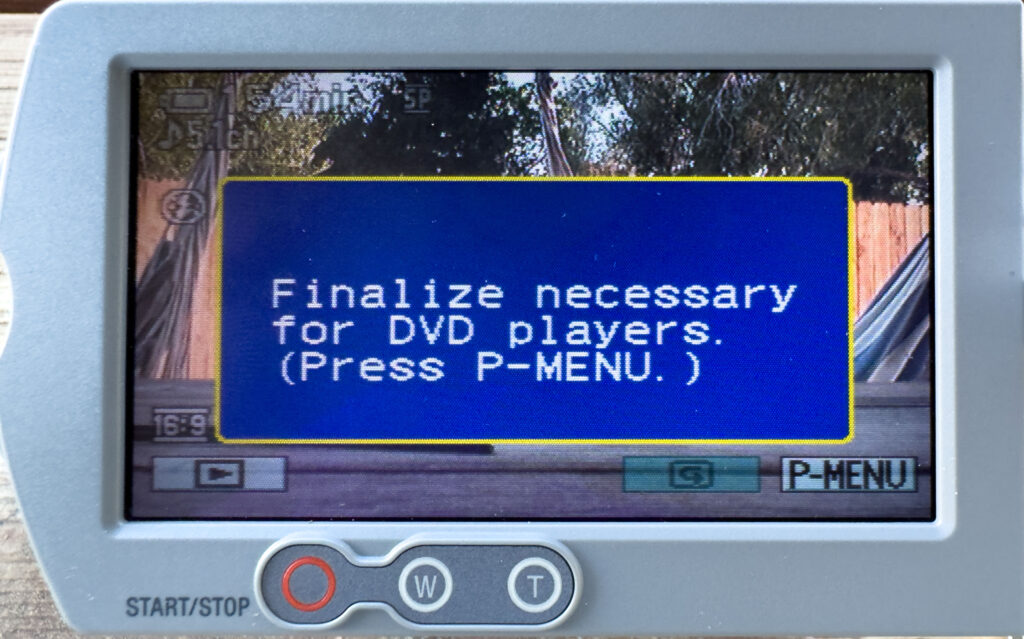

It is missing the AUDIO_TS folder, which is fine, but here is the catch. In order for the disc to be readable by another device, it has to be finalized!

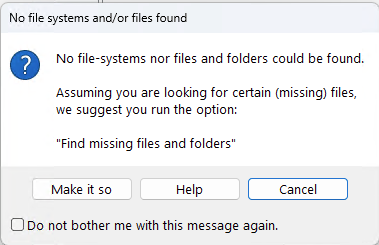

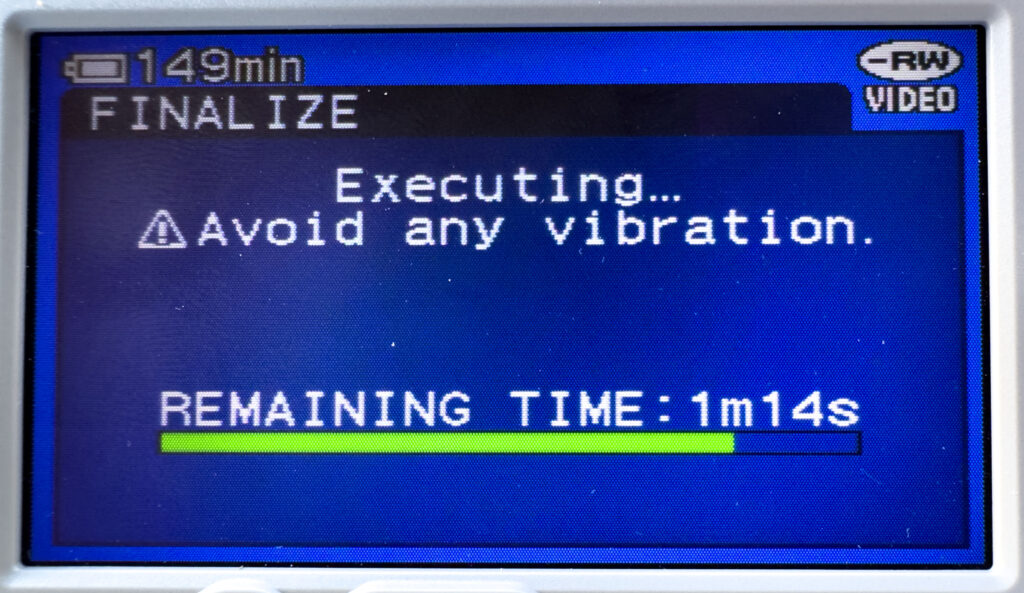

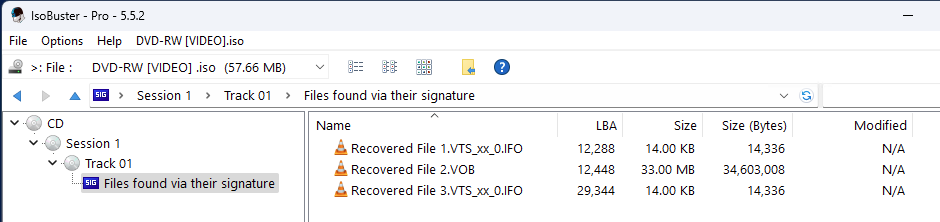

Finalizing is an action which has to happen to any optical disc to “close” out the disc. This process adds important directory and file system data so computers and DVD Players can read the disc properly. Many camera’s like mine and other DVD Recorders require this step when you are finished recording. Unfortunately, it’s an extra step which can take a few minutes, so its is often forgotten. I have had many optical discs come to me over the years because they show up as blank or uninitialized when read on a computer. I fear many people have put them aside or thrown them away as blank, not knowing they have data on them. Luckily with most burnable discs, you can often see the difference from a blank disc and a burned disc from the underside, writable surface.

The filesystem used on most DVD-Video discs is called UDF, Universal Disk Format. It is often combined on hybrid discs with ISO-9660 and HFS for compatibility, but can be the only filesystem as well. According to the specifications, a UDF formatted disc should have a Volume recognition sequence to identify as a UDF disk. On a finalized disc I can find this sequence, but on an un-finalized disc, it is missing. This makes sense as the the disc is often seen as unformatted. A tool I use to explore a disc like this is with ISOBuster.

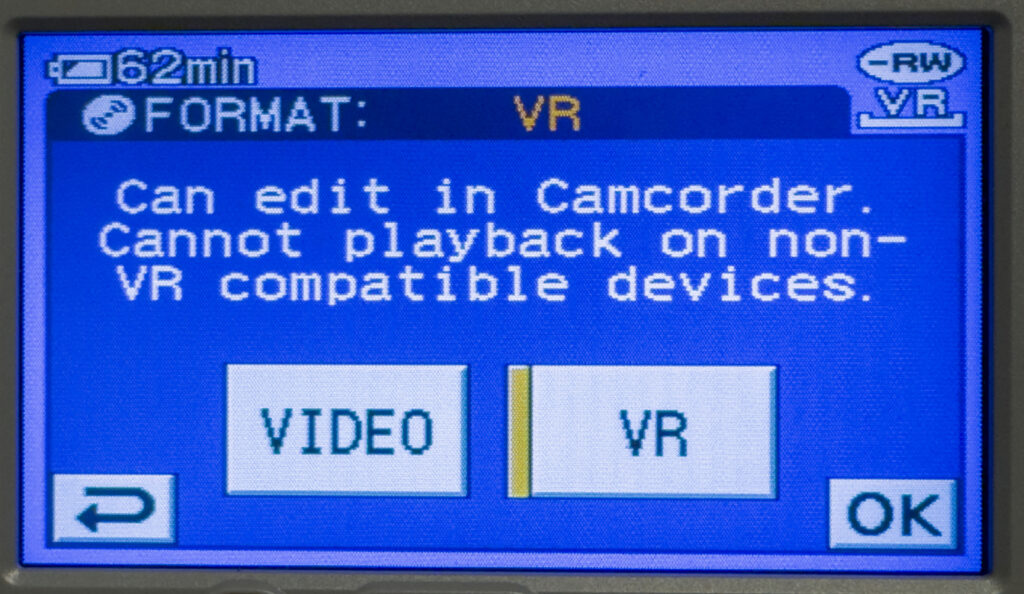

Another interesting feature of my Sony Handycam is the option to choose what type of disc you would like to prepare when you insert a blank disc. I get the option to choose Video or VR mode. Video is your normal DVD-Video format, but VR Mode is something a little different.

tree /Volumes/2025_05_23_08H29M_PM
/Volumes/2025_05_23_08H29M_PM
└── DVD_RTAV
    ├── VR_MANGR.BUP
    ├── VR_MANGR.IFO
    └── VR_MOVIE.VRO

2 directories, 3 files

Instead of your expected VIDEO_TS folder, we see a DVD_RTAV folder with some different files inside. No this is a Virtual Reality mode, like I originally thought, the VR simply stands for Video Recording and is a standard. It is meant to allow for easier editing of the video format, but is not compatible with your standard DVD Player. The VRO format used is pretty cool, it is a container format, MPEG-PS, for both audio and video, also containing both 4:3 and 16:9 aspect ratios, unlike a VOB where the aspect ratio is set.

hexdump -C /Volumes/2025_05_23_08H29M_PM/DVD_RTAV/VR_MOVIE.VRO | head
00000000  00 00 01 ba 44 00 04 00  04 01 01 89 c3 f8 00 00  |....D...........|
00000010  01 bb 00 12 80 c4 e1 04  e1 7f b9 e0 e8 b8 c0 20  |............... |
00000020  bd e0 3a bf e0 02 00 00  01 bf 07 d4 50 00 00 00  |..:.........P...|
00000030  00 4d e3 00 00 00 00 00  ff ff ff ff ff 00 00 00  |.M..............|
00000040  00 00 00 00 00 00 00 00  53 4f 4e 59 5f 4d 4f 42  |........SONY_MOB|
00000050  49 4c 45 20 20 20 20 20  20 20 20 20 20 20 20 20  |ILE             |
00000060  20 20 20 20 20 20 20 20  41 52 49 5f 44 41 54 41  |        ARI_DATA|
00000070  01 02 ff ff 53 4f 4e 59  00 44 43 52 2d 44 56 44  |....SONY.DCR-DVD|
00000080  30 30 34 47 00 01 55 53  52 54 59 50 45 31 4c 4b  |004G..USRTYPE1LK|
00000090  00 10 01 00 00 00 00 00  00 00 00 00 00 00 00 00  |................|

The VRO file does identify as a MPEG Program stream (x-fmt/386), but does contain a little extra information. My trusty copy of the book DVD Demystified has a bunch more info on this format if you are interested, you can find a copy here. The VRO format is an MPEG PS so identification is covered, but the current PRONOM signature doesn’t like the VRO extension. The BUP & IFO files on the disc are not identified. This is because the PRONOM signature, which covers both of these formats, is looking for the ASCII string “DVDVIDEO-VTS” or “DVDVIDEO-VMG”. It won’t find either of those strings as this is not the DVD-Video standard. instead it should look for the string “DVD_RTR_VMG” found in these files.

hexdump -C /Volumes/2025_05_23_08H29M_PM/DVD_RTAV/VR_MANGR.IFO | head
00000000  44 56 44 5f 52 54 52 5f  56 4d 47 30 00 00 7f ff  |DVD_RTR_VMG0....|
00000010  00 00 00 00 00 00 00 00  00 00 00 00 00 00 02 07  |................|
00000020  00 11 00 00 00 00 00 00  00 00 00 00 00 00 00 00  |................|
00000030  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  |................|
00000040  1e 5c 03 11 ff ff ff ff  ff ff ff ff ff ff ff ff  |.\..............|
00000050  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
00000060  ff ff 4d 41 59 20 32 33  20 32 30 32 35 20 20 20  |..MAY 23 2025   |
00000070  38 3a 32 39 50 4d 00 00  00 00 00 00 00 00 00 00  |8:29PM..........|
00000080  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  |................|

I will probably suggest this addition to PRONOM for identification, but if you need to work with this format, you can use tools like: https://www.pixelbeat.org/programs/dvd-vr
